The Broadway and Broadway S come with the same charger specifications.
Input: 100-250V, 50/60Hz, global voltage
Output: 24V/2A, constant voltage output with protection circuit.

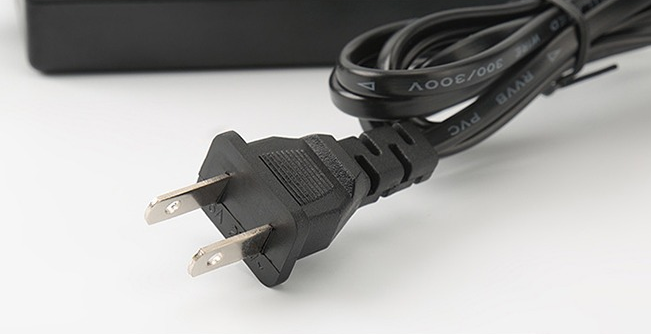

Input plug: Standard two-prong plug (standard), compatible with US standard and most sockets.

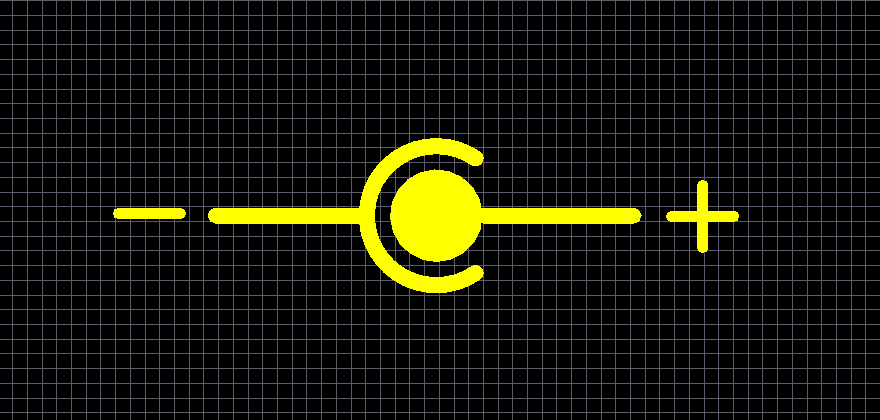

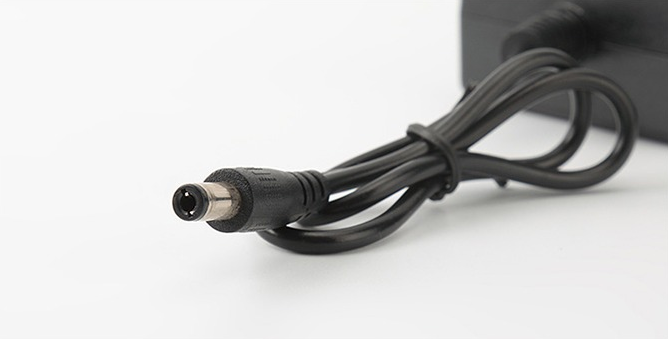

Output plug: Standard DC plug, positive inside, negative outside. Outer diameter 5.5mm, inner diameter 2.5mm
User-configured chargers must fully meet the following requirements. Repair costs may apply if the Broadway is damaged due to incorrect charger selection.
Output plug: Standard DC plug, 5.5mm outer diameter, 2.5mm inner diameter.
Output voltage: 24V DC constant voltage output.
Output current capacity: ≥1.5A.
**The charger’s input (high voltage) and output (low voltage) terminals must be completely electrically isolated. Short-circuiting between any input and any output terminal is absolutely prohibited. This is extremely dangerous!

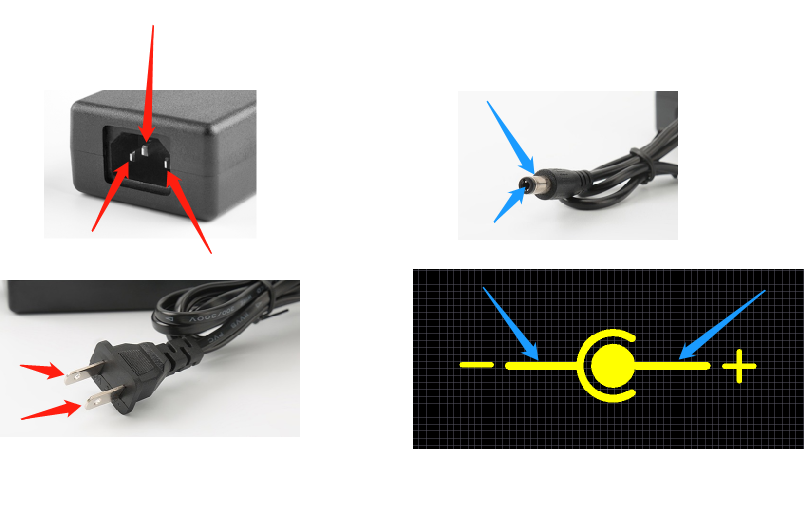

In the diagram below, any input pin marked in red must never be short-circuited to any output pin marked in blue. Use a multimeter in resistance mode to cross-test each red pin and each blue pin sequentially; the resistance must be greater than 100MΩ.
