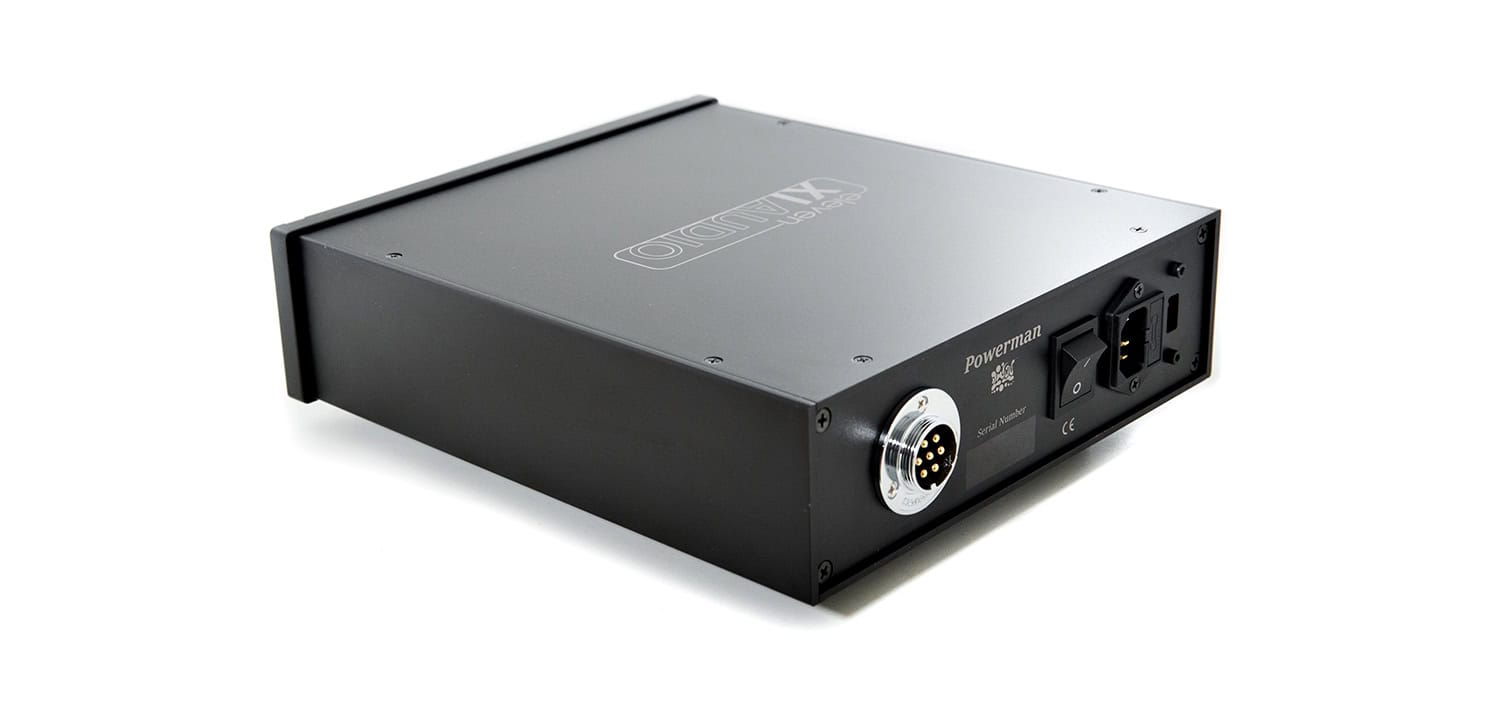

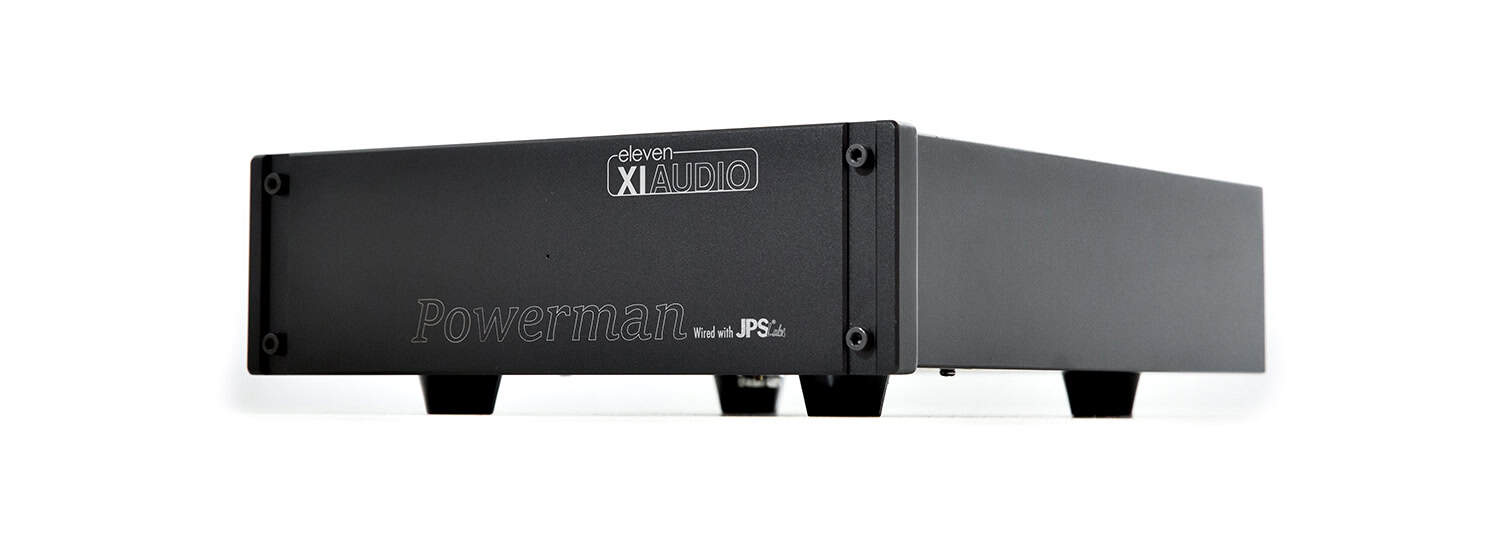

Powerman™
High Current Linear Power Supply for Formula S
Powerman™ was originally developed as an upgrade companion for the XIAUDIO™ Formula S headphone amplifier, Powerman™ is a dedicated external power supply engineered to unlock the amplifier’s full sonic potential.
By replacing the internal power source with a high-current discrete linear supply, Powerman™ provides greater energy reserve, lower noise, and improved stability — allowing Formula S to deliver a more refined and immersive listening experience.
Sound Section
More Power. More Space. More Musicality.
At the heart of Powerman™ is a low-noise discrete regulation circuit paired with a large toroidal transformer, delivering a cleaner and more stable power foundation for the Formula S amplifier.
The result is a deeper soundstage, enhanced micro-detail retrieval, improved spatial realism, and a quieter background that lets music emerge with greater clarity and natural expression.
Features
▸ Dedicated external power supply designed for XIAUDIO™ Formula S
▸ High-current linear power architecture
▸ Ultra-low-noise discrete voltage regulation
▸ Large toroidal transformer for increased energy reserve
▸ 36 cm / 14" custom umbilical cable included
▸ One AC power connection required
Specifications
| Dimensions | 24 cm W × 26 cm D × 8.5 cm H |
| Weight | 5 kg / 11 lbs |
| Power Input |
100–115 VAC / 230 VAC 50/60 Hz Switch selectable |
| Certification | CE certified |
| AC Cable |
AC power cable not included. Requires standard 3-pin IEC power cable. |
Installation Note
Before connecting Powerman™ to Formula S, disconnect AC power from both units.
Connect the supplied umbilical cable between Powerman™ and Formula S first, then connect AC power only to Powerman™.
Formula S must never be connected directly to AC power while connected to Powerman™, as this may cause damage.
