VoltCel | Beyond Convention: Ultra-Premium Linear Power Supply for Audiophile Systems

Born for ultra-performance audio systems, VoltCel breaks through the limitations of industrial-grade power supplies. Featuring proprietary BTR and LDCD technologies, it instantly elevates the sonic performance of both digital streaming and analog audio systems.

2026/6/11

VoltCel has facilitated the creation of five limited-edition 24K Gold CDs!

Top studio recording label DA-Records also bought it.

READ MORE →

How important is the power supply in an audio system?

If you get 1mV of noise mixed into a music signal, you'll go crazy.
On the power rail, you can easily ignore noise of 100mV+.

In music signals, if the 5kHz response is attenuated by 20dB, you'll go crazy.
On the power rail, the ability to handle 5kHz noise has decreased by 20dB, which you seem to be ignoring.

More and more users of digital streaming audio equipment and analog devices such as DACs, headphone amplifiers, and phono preamps are finding that the output quality of the transformer has become a key factor in determining the performance of an audio system. Eleven Audio's newly developed VoltCel linear power supply is a redesigned power supply based on the logic of Hiend analog amplifier circuits, which can significantly improve the sound quality performance of digital and analog audio equipment.

More than Purification and Filtering

Traditional power supply design aims to provide stable operation for the system, which is far from meeting the extremely high technical requirements of audio systems.

Linear power supply products in the audio market mostly rely on passive filtering (such as stacking a large number of filter capacitors) and supplementary components (such as power transformers made of heavy materials and rectifier diodes used beyond specifications). In terms of active circuit design, they are limited to adding transistors to existing industrial power ICs to expand the output current, without making any improvement to the active circuit technology.

VoltCel Core Advantage: Maximizing current drive capability over a wide frequency and bandwidth

The VoltCel applies Hiend analog amplifier design principles to power supply design, outperforming ordinary linear power supplies by over 100 times in key sound quality metrics. It boasts an extreme extended current drive capability of up to 10A and a maximum frequency bandwidth of 100kHz. The Eleven Audio VoltCel significantly reduces system noise floor, resulting in a marked improvement in soundstage depth, instrument imaging, and bass cohesion. Whether connected to a flagship headphone amplifier or a high-precision decoder (DAC), it delivers a denser, more three-dimensional, and pure listening experience.

VoltCelIt is a DC linear power supply that enhances the sound quality of an audio system by maximizing the dynamic performance of the power supply.

Features

▸Fixed voltage outputs: Available in various models including 5V / 7V / 9V / 12V / 15V / 19V / 24V.
▸USB-PD input supported: USB-PD power input is supported for 5V / 7V / 9V / 12V / 15V models.
▸High current output capability: Supports a maximum current output of up to 10A.
▸Exclusive BTR (Balanced Transient Response) technology: Focuses on correcting the "asymmetry" of voltage fluctuations to ensure a balanced transient response.
▸Exclusive LDCD (Linear Dynamic Current Drive) technology: Features excellent current transient response, enabling ultra-fast, linear power drive.

VoltCel Focusing on two core key points: The asymmetry of voltage fluctuations and transient response characteristics of current。

All DC power supplies experience voltage fluctuations with load changes, resulting in varying degrees of output voltage fluctuations—a characteristic common to all DC power supplies. An ideal power supply should exhibit a symmetrical transient response to load current fluctuations. However, typical DC power supplies generally exhibit an 'asymmetry' in their fluctuation response; a difference of 2.5 times between positive and negative responses is common. This leads to strong nonlinear distortion with low Internal Impedance being transmitted to audio equipment, thus interfering with the purity of sound quality. VoltCel, through its symmetrical balanced circuit design, enables the power supply to produce a perfectly symmetrical response to positive and negative load current fluctuations.

▸ BTR (Balanced Transient Response)
VoltCel's exclusive BTR technology, through a precise and high-speed symmetrical balanced circuit design, exhibits a balanced and symmetrical response. This prevents the power supply from injecting strong non-linear distortion into the audio equipment, thereby significantly improving the purity of the sound quality.

▸ LDCD (Linear Dynamic Current Drive)
Industrial applications don't impose stringent bandwidth requirements on power supplies and power ICs; performance typically degrades significantly at frequencies in the kilohertz range. A common solution is to place a decoupling capacitor (usually 0.1uF) close to the power pin of each IC in the device to address high-frequency performance. While this adequately solves the problem of stable device operation, it's far from sufficient for demanding audio systems. Audio systems require consistently high performance from the power supply across a frequency range exceeding audible limits. VoltCel, with its high-bandwidth current drive capability up to 100kHz, ensures output voltage stability, resulting in solid, powerful, pure, and incredibly detailed sound.

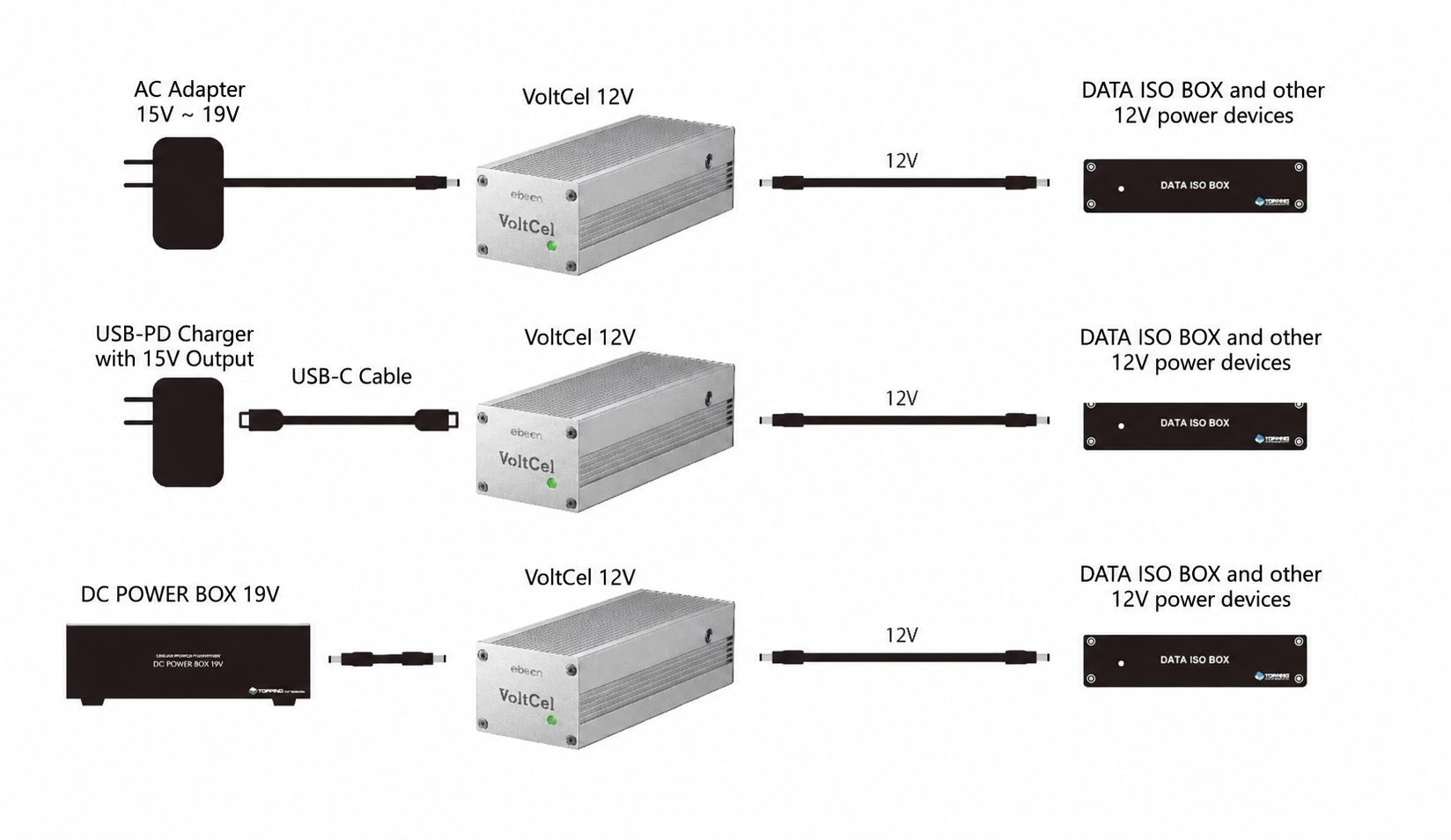

Schematic diagram: VoltCel 12V is the template
